Magnet Wire

Magnet Wire




Rea

AuthorizeD DISTRIBUTOR

As one of the world’s largest manufacturers of magnet and nonferrous wire products, Rea produces copper and aluminum insulated magnet wire, electromechanical cable and bare wire used in the manufacture of motors, generators, transformers and coils for everything from cars and computers to power grids and alternative energy needs.




THERMAL CLASS: 105°C

INSULATION: Polyvinyl Formal

CONDUCTOR: Copper, Aluminum

SHAPE: Round, Square & Rectangular

APPLICATIONS: Oil-filled transformers, superconducting coils for cryogenic applications, motors


THERMAL CLASS: 155°C

INSULATION MATERIAL: Dacron /fiberglass coated

Bare metal
- with Epoxy Varnish
- with Theic Modified Polyester overcoated with Poly-amide/Imide (AI)
- with Theic Modified Polyester overcoated with Poly-amide/Imide (AI)
- and Epoxy Varnish

with Aromatic Polyimide and Epoxy Varnish

CONDUCTOR: Copper

SHAPE: Round, square, rectangular


THERMAL CLASS: 220°C

INSULATION: Theic Modified Polyester overcoated with Polyamide Imide (AI)

CONDUCTOR: Copper, Aluminum

SHAPE: Round

APPLICATION: Motors and Generators, General Comm & Ind


THERMAL CLASS: 240°C

INSULATION: Aromatic Polyimide Tape

CONDUCTOR: Copper

SHAPE: Round

APPLICATIONS: Dry-type transformers, traction motors, DC field coils, submersible pump motors very high temperature coils and relays, encapsulated coils, and hermetically sealed relays


THERMAL CLASS: 105°C

INSULATION: Kraft Paper tape over bare copper

CONDUCTOR: Copper, Aluminum

SHAPE: Round, Shaped

APPLICATIONS: Oil-filled transformer, utility transformers, power generation


THERMAL CLASS: 200°C

INSULATION:  Dacron/fiberglass and Polyester Varnish over Bare Copper

- Theic Modified Polyester overcoated with Polyamide Imide (AI)  and

- Dacron/fiberglass and Silicone varnish

- Aromatic Polyimide + Fiberglass + Silicone Varnish

CONDUCTOR: Copper

SHAPE: Round, Shaped

Screen Shot 2017-11-15 at 11.28.40 AM.png

 THERMAL CLASS: 220°C

INSULATION: Sole coating of Polyamideimide (AI) insulation

CONDUCTOR: Copper

SHAPE: Round, Shaped

APPLICATION: General Motors/Generators, General Automotive


THERMAL CLASS: 240°C

INSULATION: Aromatic Polyimide

CONDUCTOR: Copper

SHAPE: Shaped

APPLICATIONS: Dry-type transformers, traction motors, DC field coils, submersible pump motors very high temperature coils and relays, encapsulated coils, and hermetically sealed relays


THERMAL CLASS: 130°C

INSULATION: Polyurthane overcoated with Polyamide (Nylon) + Polyvinyl Butyral

CONDUCTOR: Copper

SHAPE: Round

APPLICATIONS: Specialty transformers


THERMAL CLASS: 220°C

INSULATION: Aromatic Polyamide Tape Wrapped CONDUCTOR: Copper, Aluminum

SHAPE: Round, shaped

APPLICATION: General Transformer, Utility Distribution Transformers,

Utility Power Transformers, Specialty Transformers

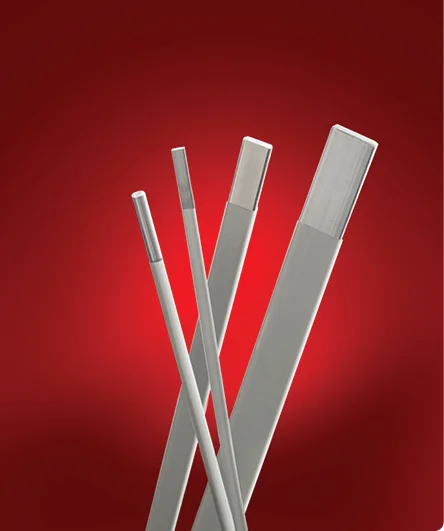

Screen Shot 2017-11-15 at 11.28.26 AM.png

THERMAL CLASS: 220°C

INSULATION: Poly Phenyl Sulfone

CONDUCTOR: Aluminum

SHAPE: Round, Shaped

APPLICATIONS: Utility transformers
