UHV Components

UHV Components




Solid Sealing Technology

AUTHORIZED DISTRIBUTOR (Indian Subcontinent)

Solid Sealing specializes in highly engineered, sealed products used in high-tech analytical or process equipment.



Electrical Feedthroughs

Electrical Feedthroughs

Voltage Range:  0 – 1250 V

Current Range: 0 - 1000 Amps

Shell/ body: Stainless steel

Sealing/insulation: Alumina ceramic

No of conductors: 1, 2,3, 4,5,6,8,10,12, 41, custom

Mount type:  CF, KF, NPT, WELD



Thermocouples Feedthrough Specifications

Thermocouples Feedthrough Specifications

Type:  K, C, E, J, T, N, R, S

No. of pairs: 1,2,3, 5,10, single conductor

With/without, spade plug, set screws

Temperature Range:  -269°C  to 450°C




Custom Beam Position Monitor Feedthroughs

Custom Beam Position Monitor Feedthroughs

Available in Type N or SMA RF connectors on the atmosphere side and a capacitive button on the vacuum side,

Manufactured with non-magnetic materials and utilize glass-ceramic sealing.

Coaxial Feedthrough Specifications

Coaxial Feedthrough Specifications

Type N, BNC, Sub – D, SMA, SMP, miniature

Single/ double ended, with/without plug

Voltage Range:  1-  20 kV

Current Range: 1- 16.5 Amps

Temperature Range: -269°C -  450°C

Mount type: CF, KF, NPT, ISO, WELD




Standard Isolator Specifications

Standard Isolator Specifications

Voltage  0 -  90 kV

Temperature: -269°C to  450°C

Internal Pressure 1x10-10 Torr up to 1000 psig

ID Dimension:  0.11 inches to 2.5 inches




Standard Baseplate Specifications

Standard Baseplate Specifications

Voltage  0 -  90 kV

Temperature: -269°C to  450°C

Internal Pressure 1x10-10 Torr up to 1000 psig

ID Dimension:  0.11 inches to 2.5 inches

Connectors Specifications

Connectors Specifications

Sub-D, Micro-D, Octal, hermetic USB

Single/ Double ended

Voltages: 0 - 12 kV DC

Current 0- 250 Amps

Conductors: 1 - 62 pins

Temperature Range:  -269°C -  450°C

Internal Pressure:  1x10-10 Torr up to 3500 psi

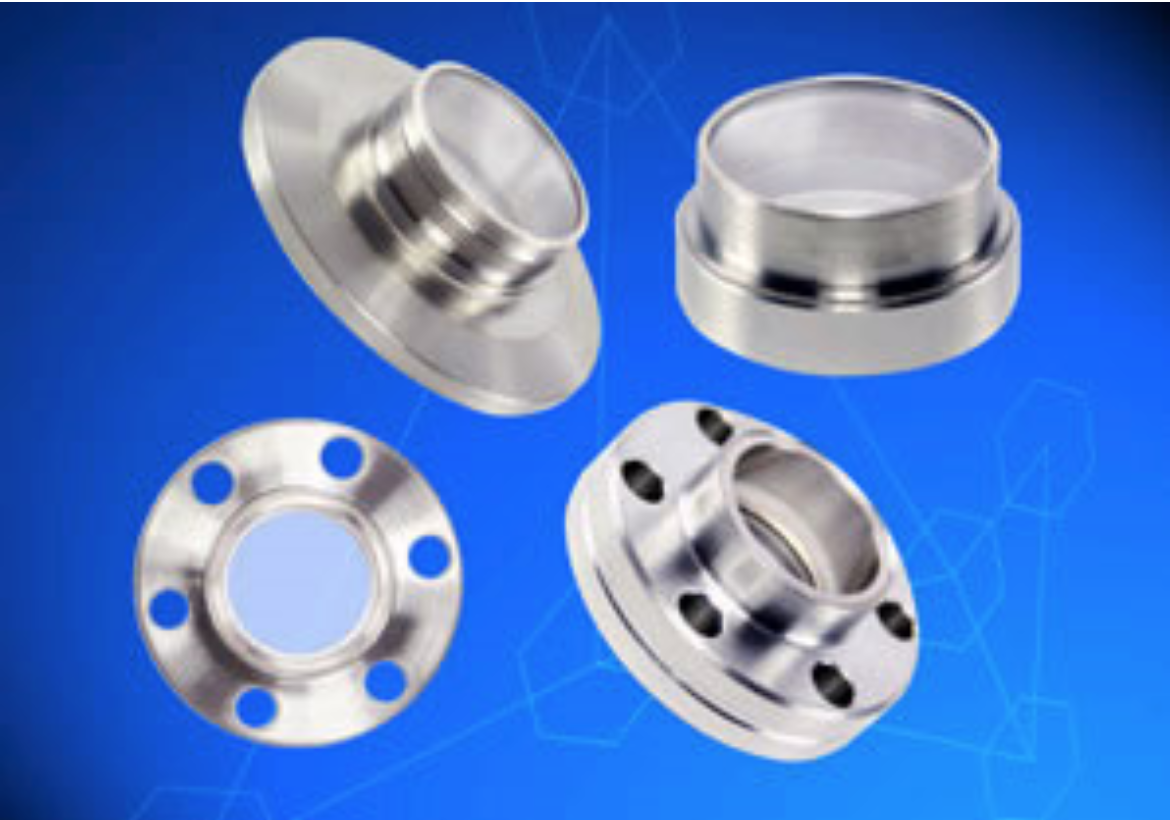

Viewport Specifications

Viewport Specifications

View Diameters: 0- 5.0 inches

Standard Transmission 0.25 -  4 microns

Temperature Range:  -269°C to +450°C

Internal Pressure: 1x10-10 Torr up to 400 psig

New nonmagnetic, cryogenic vacuum Sapphire  Viewports

Pinch-off Tube Specifications

Pinch-off Tube Specifications

Tube materials:  OFE copper CDA 101 (standard) or nickel 200 for special applications

Assemblies:  UHV compatible and vacuum brazed

Available with weld-able adapters, vacuum flanges, or special fittings
